F0801-F0907 - PVC Conduit End Fittings
Revision 7
Jul 16, 2008

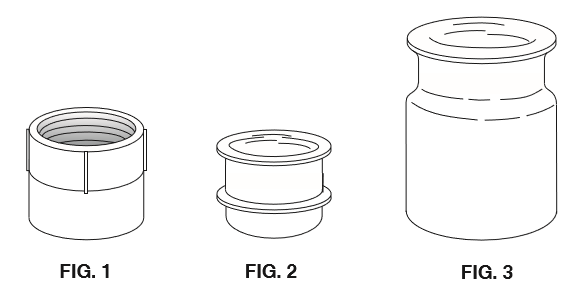

| Compatible Unit | Fig. | Description | Size | Qty | MID |
|---|---|---|---|---|---|
| F0801 | 1 | Adapter, Conduit Steel to PVC | 1" | 1 | 257817 |
| F0802 | 1 | Adapter, Conduit Steel to PVC | 2" | 1 | 257825 |
| F0803 | 1 | Adapter, Conduit Steel to PVC | 3" | 1 | 257833 |
| F0804 | 1 | Adapter, Conduit Steel to PVC | 4" | 1 | 1002128 |
| F0806 | 1 | Adapter, Conduit Steel to PVC | 6" | 1 | 1001960 |
| F0902 | 2 | End, Bell PVC Sch 40 Molded | 2" | 1 | 250720 |
| F0902A | 2 | End, Bell PVC Sch 40 Molded | 2-1/2" | 1 | 250712 |
| F0903 | 2 | End, Bell PVC Sch 40 Molded | 3" | 1 | 250738 |
| F0904 | 2 | End, Bell PVC Sch 40 Molded | 4" | 1 | 250746 |
| F0906 | 2 | End, Bell PVC Sch 40 Molded | 6" | 1 | 250803 |
| F0907 | 3 | End, Bell PVC Sch 40 Fabricated | 6" | 1 | 250762 |
