F0651-5 - 6" Plastic Spacers for Nonmetallic Conduit
Revision 3
Aug 18, 2008

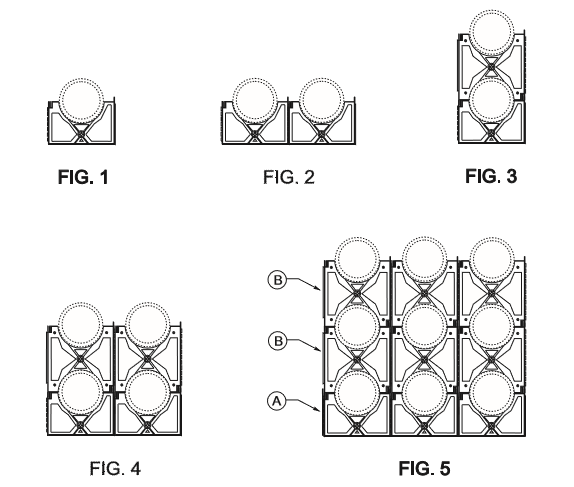

| Compatible Unit | Fig. | Item | Description | Qty | MID |
|---|---|---|---|---|---|
| F0651 | 1 | A | Spacer, Base 6” Conduit 3” Separation | 1 | 250861 |
| F0652 | 2 | A | Spacer, Base 6” Conduit 3” Separation | 2 | 250861 |
| F0653 | 3 | A | Spacer, Base 6” Conduit 3” Separation | 1 | 250861 |
| B | Spacer, Intermediate 6” Conduit 3” Separation | 1 | 250960 | ||
| F0654 | 4 | A | Spacer, Base 6” Conduit 3” Separation | 2 | 250861 |
| B | Spacer, Intermediate 6” Conduit 3” Separation | 2 | 250960 | ||
| F0655 | 5 | A | Spacer, Base 6” Conduit 3” Separation | 3 | 250861 |
| B | Spacer, Intermediate 6” Conduit 3” Separation | 6 | 250960 |
Notes:
- Spacers should be placed at 6 - 10 ft intervals.
- Refer to T&D Guideline 4-24-6.0 for encasement of nonmetallic conduit.
- The following materials are typically used in duct bank construction, specify as necessary:
C0205 Wire, #14 AWG Sol Bare Copper (for securing duct bank) 1' 848517 F0690 Rebar, No. 5 (5/8” x 24”) 1 765422 F0691 Cap, Rebar, Lime Green #3 - #9 (3/8” - 1-1/4”) 1 765430 F0695 Tape, UG Marking, Red 6” x 1000’ Caution Electric Line Buried Below 1 762634
