F0646-50 - 4" Plastic Spacers for Nonmetallic Conduit
Revision 5
Aug 12, 2010

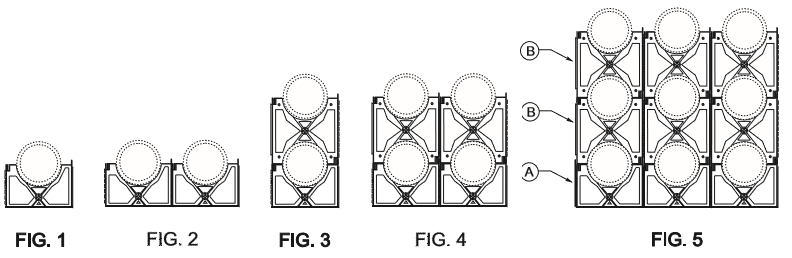

| Compatible Unit | Fig. | Item | Description | Qty | MID |
|---|---|---|---|---|---|
| F0646 | 1 | A | Spacer, Base 4” Conduit 3” Separation | 1 | 1001054 |
| F0647 | 2 | A | Spacer, Base 4” Conduit 3” Separation | 2 | 1001054 |
| F0648 | 3 | A | Spacer, Base 4” Conduit 3” Separation | 1 | 1001054 |
| B | Spacer, Intermediate 4” Conduit 3” Separation | 1 | 1001055 | ||
| F0649 | 4 | A | Spacer, Base 4” Conduit 3” Separation | 2 | 1001054 |
| B | Spacer, Intermediate 4” Conduit 3” Separation | 2 | 1001055 | ||
| F0650 | 5 | A | Spacer, Base 4” Conduit 3” Separation | 3 | 1001054 |
| B | Spacer, Intermediate 4” Conduit 3” Separation | 6 | 1001055 |
Notes:
- Spacers should be placed at 6 - 10 ft intervals.
- Refer to T&D Guideline 4-24-6.0 for encasement of nonmetallic conduit.
- The following materials are typically used in duct bank construction, specify as necessary:
C0205 Wire, #14 AWG Sol Bare Copper (for securing duct bank) 1' 848517 F0690 Rebar, No. 5 (5/8” x 24”) 1 765422 F0691 Cap, Rebar, Lime Green #3 - #9 (3/8” - 1-1/4”) 1 765430 F0695 Tape, UG Marking, Red 6” x 1000’ Caution Electric Line Buried Below 1 762634
