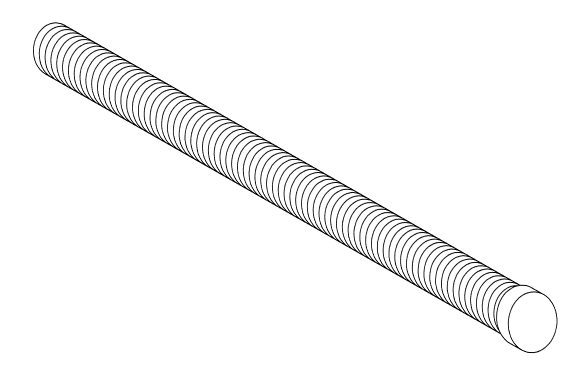

F0389 - "Smooth-Cor" Flexible Polyethylene Conduit

Revision 5
Nov 2, 2016

Compatible Unit IPS Size O.D. I.D. Wall Thickness Qty MID
F0389 6: 5.785" 6.886" 1.101"   240812

Notes:

  1. Smooth-Cor conduit is supplied in 20’ lengths with a factory assembled coupling on one end.
  2. All dimensions listed above are nominal.
  3. Minimum recommended bending radius is 10’.
  4. Smooth-Cor flexible polyethylene duct is intended for use in confined or congested areas as an alternative to multiple rigid PVC bends. Smooth-Core is not intended as a replacement for rigid PVC conduit in standard straight line installations.
  5. The 6" Smooth-Cor Coupling Kit is included with PVC adapters and a Bell End to connect Smooth-Cor conduit to standard rigid PVC conduit.
Description MID
6" Smooth-Cor Coupling Kit 240838
