F0301-56 - PVC Conduit

Revision 8
Jan 13, 2025

Compatible Unit IPS Size (in.) NEMA Type O.D. (in.) I.D. (in.) Min. Wall Thickness (in.) Qty (ft.) MID
F0301 1 TC-2, Sch 40 1.315 1.049 0.133 1 250027
F0302 2 TC-2, Sch 40 2.375 2.067 0.154 1 1001852
F0303 3 TC-2, Sch 40 3.500 3.068 0.216 1 1001900

F0304S40 4 TC-2, Sch 40 4.500 4.026 0.237 1 1001992
F0306S40 6 TC-2, Sch 40 6.625 6.065 0.280 1 1002213

F0304* 4 TC-6, DB-60 4.500 4.258 0.121 1 250093
F0306* 6 TC-6, DB-60 6.625 6.261 0.182 1 250126

Notes:

  1. The PVC conduit listed above is supplied in 20 ft sections.
  2. Each section of conduit has one integral deep socket belled end and one plain end. The non-belled end of the 2" and 3" Schedule 40 conduit is chamfered on the inside edge of the conduit.
    Refer to District Material Standard 250027.1 for PVC chamfer requirements.
  3. Dimensional references - former District standard 1", 2" and 3" NEMA TC-8 DB-120 PVC conduit:
    IPS SizeO.D.I.DMin. Wall
    Thickness
    1"1.315"1.195"0.060"
    2"2.375"2.221"0.077"
    3"3.500"3.264"0.118"
  4. Sizes 4" and 6" DB-60 PVC conduits are used by the District for maintenance only. Previously, DB-60 was used except for areas with rocky soil, where conditions were too severe for Type DB conduit. Schedule 40 is the minimum rated conduit for new construction.
  5. PVC solvent cement must be specified separately; it is issued in 1-pint cans. The following guidelines can be used to estimate cement quantities:
    1 pt per 200 ft of 2" conduit
    1 pt per 150 ft of 3" conduit
    1 pt per 100 ft of 4" conduit
    1 pt per 30 ft of 6" conduit
Compatible Unit Description Qty MID
F0399 Cement, PVC Plastic Pipe Solvent 1 Pint 1 819609

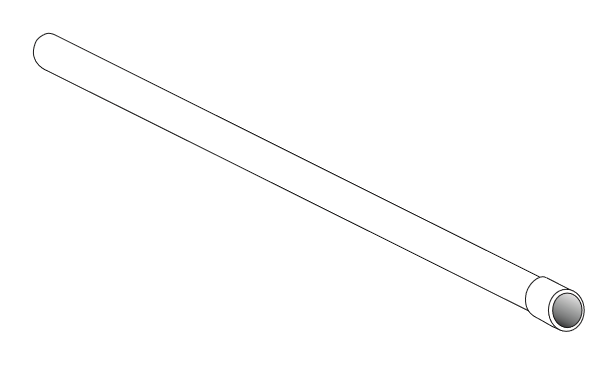

Compatible Unit IPS Size (in.) NEMA Type O.D. (in.) I.D. (in.) Min. Wall Thickness (in.) Qty (ft.) MID
F0351 1 TC-2, Sch 80 1.315 0.957 0.179 1 250035
F0352 2 TC-2, Sch 80 2.375 1.939 0.218 1 250069
F0353 3 TC-2, Sch 80 3.500 2.900 0.300 1 250085
F0354 4 TC-2, Sch 80 4.500 3.826 0.337 1 250100
F0356 6 TC-2, Sch 80 6.625 5.761 0.432 1 250118

Notes:

  1. The Schedule 80 PVC conduit listed above is supplied in 10 ft sections.
  2. Each section of this conduit has one integral deep socket belled end and one plain end. The non-belled end is chamfered on the inside edge of the conduit.
    Refer to District Material Standard 250027.1 for PVC chamfer requirements.
  3. PVC solvent cement must be specified separately; it is issued in 1-pint cans. The following guidelines can be used to estimate cement quantities:
    1 pt per 200 ft of 2" conduit
    1 pt per 150 ft of 3" conduit
    1 pt per 100 ft of 4" conduit
    1 pt per 30 ft of 6" conduit
Compatible Unit Description Qty MID
F0399 Cement, PVC Plastic Pipe Solvent 1 Pint 1 819609
