F1180-8 - Duct Plugs - 15kV Jacketed Primary Underground Cables in PVC Duct

Revision 2
Jan 14, 2025

C.U. Description Qty MID
F1180 Plug, Duct Single Conductor 15kV Jkt UG Cable in 2" Sch 40 PVC
Sleeve, Bushing Adapter #2 15kV Jkt UG Cable in 2" Sch 40 PVC		 1
1		 1002050
1002040
F1181 Plug, Duct Single Conductor 15kV Jkt UG Cable in 2" Sch 40 PVC
Sleeve, Bushing Adapter 1/0 15kV Jkt UG Cable in 2" Sch 40 PVC		 1
1		 1002050
1002051

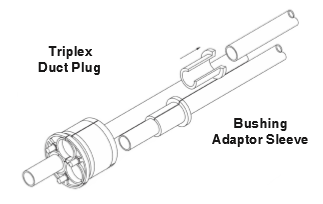

F1184 Plug, Duct Triplex #2 15kV Jkt UG Cable in 4" SCH 40 PVC 1 1002076
F1185 Plug, Duct Triplex 1/0 15kV Jkt UG Cable in 4" SCH 40 PVC 1 1001728
F1186 Plug, Duct Triplex 350 kcmil 15kV Jkt UG Cable in 6" SCH 40 PVC 1 1002077
F1188 Plug, Duct Triplex 1100 kcmil 15kV Jkt UG Cable in 6" SCH 40 PVC 1 5000752

C.U. Description Qty MID

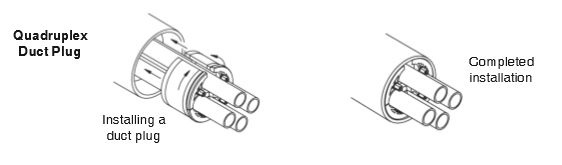

F1187 Plug, Duct Quadruplex 1000 kcmil 15kV UG Cable in 6" SCH 40 PVC
Sleeve, Bushing Adapter 500 kcmil 600V UG Cable in 6" SCH 40 PVC		 1
1		 1001897
1001898

Notes:

  1. Duct plugs are for sealing around cables at conduit ends. They provide a long term water-tight and air-tight seal and prevent mud and other contaminants from entering a duct system.
  2. Bushing sleeves enable adapting duct plug hole sizes to accept different cable sizes.
  3. Refer to T&D Guideline 4-24-8.1 for installation instructions.
