F1160-74 - Duct Plugs - 600V Underground Secondary Cable in PVC Duct

Revision 0
Dec 26, 2007

Notes:

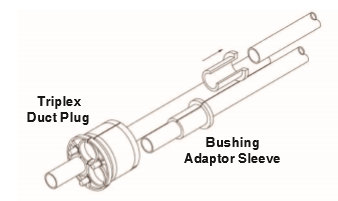

  1. Duct plugs are for sealing around cables at conduit ends. They provide a long term water-tight and air-tight seal and prevent mud and other contaminants from entering a duct system.
  2. Bushing sleeves enable adapting duct plug hole sizes to accept different cable sizes.
  3. Refer to T&D Guideline 4-24-8.1 for installation instructions.
C.U. Description Qty MID
F1160 Plug, Duct Triplex 1/0-1/0-2 600V UG Cable in 2-1/2" Sch 40 PVC 1 1001845
F1661 Plug, Duct Triplex 4/0-4/0-2/0 600V UG Cable in 2-1/2" Sch 40 PVC 1 1001846
F1162 Plug, Duct Triplex 600V UG Cable in 3" Sch 40 PVC (Sleeves Req'd)
Sleeve, Bushing Adapter 1/0 600V UG Cable in 3" Sch 40 PVC
Sleeve, Bushing Adapter #2 600V UG Cable in 3" Sch 40 PVC		 1
2
1		 1002036
1002037
1002038
F1163 Plug, Duct Triplex 600V UG Cable in 3" Sch 40 PVC (Sleeves Req'd)
Sleeve, Bushing Adapter 4/0 600V UG Cable in 3" Sch 40 PVC
Sleeve, Bushing Adapter 2/0 600V UG Cable in 3" Sch 40 PVC		 1
2
1		 1002036
1002041
1002042
F1164 Plug, Duct Triplex 600V UG Cable in 3" Sch 40 PVC (Sleeves Req'd)
Sleeve, Bushing Adapter 350 kcmil 600V UG Cable in 3" Sch 40 PVC
Sleeve, Bushing Adapter 4/0 600V UG Cable in 3" Sch 40 PVC		 1
2
1		 1002036
1002043
1002041
F1170 Plug, Duct Triplex 600V UG Cable in 3" DB-120 PVC (Sleeves Req'd)
Sleeve, Bushing Adapter 1/0 600V UG Cable in 3" Sch 40 PVC
Sleeve, Bushing Adapter #2 600V UG Cable in 3" Sch 40 PVC		 1
2
1		 1001847
1001849
1001848
F1171 Plug, Duct Triplex 600V UG Cable in 3" DB-120 PVC (Sleeves Req'd)
Sleeve, Bushing Adapter 4/0 600V UG Cable in 3" Sch 40 PVC
Sleeve, Bushing Adapter 2/0 600V UG Cable in 3" Sch 40 PVC		 1
2
1		 1001847
1001851
1001850

C.U. Description Qty MID

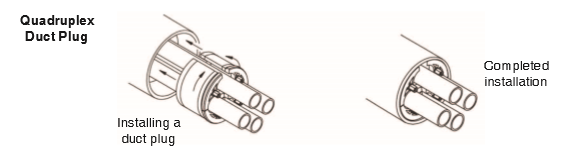

F1174 Plug, Duct Quadruplex 600V UG Cable in 4" Sch 40 PVC (Sleeves Req'd)
Sleeve, Bushing Adapter 500 kcmil 600V UG Cable in 4" Sch 40 PVC
Sleeve, Bushing Adapter 350 kcmil 600V UG Cable in 4" Sch 40 PVC		 1
3
1		 1002039
1002040
1002044
