F0690-5 - Rebar, Rebar Cap & Underground Marking Tape
Revision 1
Aug 12, 2010

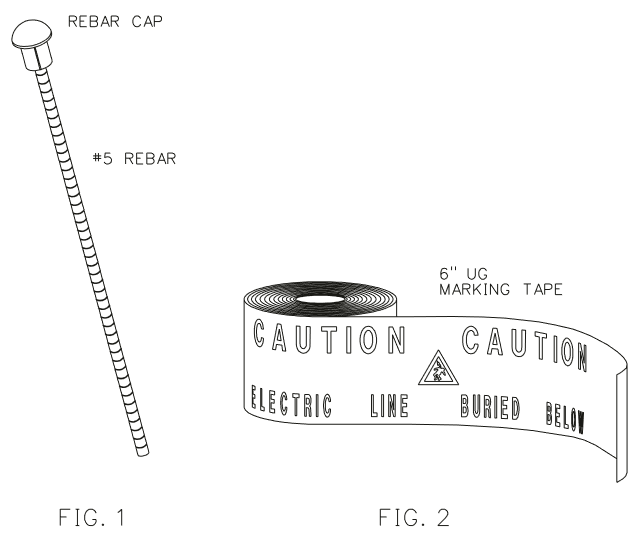

| C.U. | Fig | Description | Qty | MID |
|---|---|---|---|---|
| F0690 | 1 | Rebar, No. 5 (5/8” x 24”) | 1 | 765422 |
| F0691 | 1 | Cap, Rebar, Lime Green #3 - #9 Rebar (3/8” - 1-1/4”) | 1 | 765430 |
| F0695 | 2 | Tape, UG Marking, Red 6” x 1000’ Caution Electric Line Buried Below |
1 | 762634 |
Notes:
- Typical District applications for rebar are to serve as stakes to hold conduit in place to maintain its position in a trench and to help hold duct banks in place during the concrete pouring phase of construction. Rebar is typically placed at 10 ft intervals for such applications.
- Plastic mushroom style rebar caps help protect against cuts, abrasions or other minor injuries when working at grade. They are not designed to provide protection against impalement.
- The District typically uses UG marking tape only in conjunction with duct bank construction.
