F0397-8 - Adhesive - Bonding HDPE Pipe to PVC Couplings

Revision 0
Jan 20, 2012

C.U. Description Qty MID

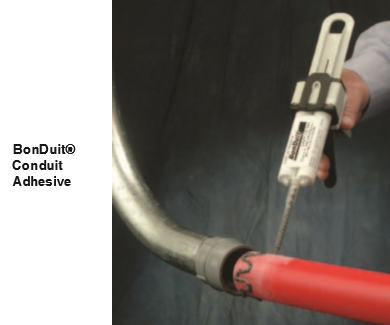

F0397 Adhesive, Conduit, Bond HDPE to PVC Couplings (BonDuit®)
2 - 50 ml BonDuit® Adhesive Cartridges
1 - Dispensing Tool
8 - Mixing Nozzles
1 - Strip of Sanding Cloth
8 - HP Cleaning Wipes
1 - Instruction Sheet		 1 kit 1002414
F0398 Adhesive, Conduit, BonDuit® Refill Kit
2 - 50 ml BonDuit® Adhesive Cartridges
12 - Mixing Nozzles
2 - Strips of Sanding Cloth
12 - HP Cleaning Wipes		 1 kit 1002674

Notes:

  1. The District's primary application for BonDuit® is for joining HDPE pipe to PVC couplings, such as at the ends of directional bores made with HDPE pipe. BonDuit® is not designed for high stress pulls.
  2. In addition to polyethylene and PVC, BonDuit® also adheres to fiberglass, steel, aluminum and concrete. Contact Standards re. BonDuit®'s use in joining other materials.
  3. The working temperature for BonDuit® is 35°F to 95°F. BonDuit® creates a strong, long-lasting, airtight and watertight bond within 1 hr of application at 70°F. The set time increases as temperature decreases. Keep BonDuit® and PVC couplings warm before application for optimal performance. Joints made with BonDuit® can be placed into position once the connection is made. The adhesive will cure under ground or water.
  4. BonDuit®'s shelf life is 18 months.
