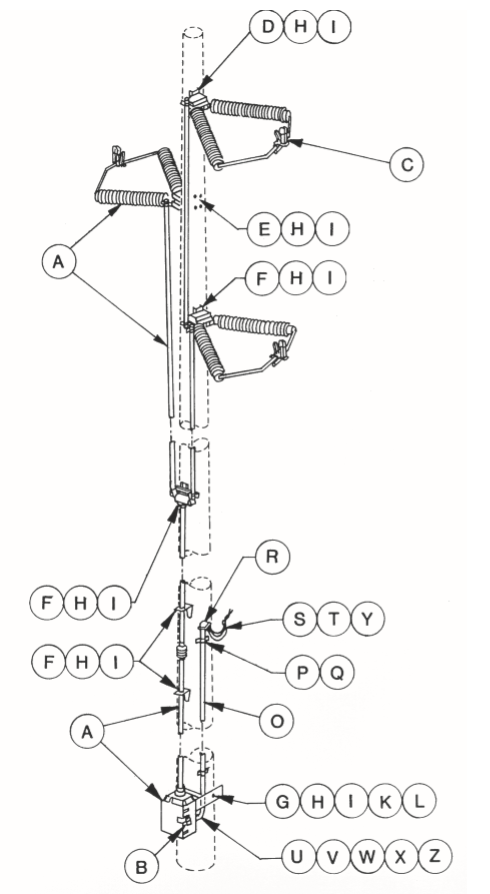

D0806 - 115kV 1200A 3Ø Switch w/ Motor Operator & Interrupters
Revision 4
Jul 28, 2016
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| D0806 | A | Switch, 1200A 115kV “V” Type w/ Motor Operator | 1 | 506800 |
| B | Padlock, HS Stl Shkl “P” Key 1-1/2” | 1 | 412693 | |
| C | Interrupter, 115kV Vacuum | 1 | 506826 | |
| D | Bolt, Machine 5/8” x 12” | 3 | 124199 | |
| E | Bolt, Machine 5/8” x 14” | 3 | 124206 | |
| F | Bolt, Machine 5/8” x 16” | 15 | 124214 | |
| G | Bolt, Machine 5/8” x 20” | 3 | 124248 | |
| H | Washer, Galv Double Coil Spring Lock 5/8” | 24 | 1001443 | |
| I | Washer, Galv Sq 3” Curved 13/16” Hole | 22 | 910019 | |
| K | Washer, Galv Rd 1-3/4” Flat 11/16” Hole | 6 | 196479 | |
| L | Washer, Galv Split Lock 11/16” Hole | 3 | 196445 | |
| O | Conduit, PVC 1" Sch 40 Gray | 40' | 250027 | |
| P | Strap, 1” IPS Pipe | 7 | 761298 | |
| Q | Nail, Cu 3/8” x 2” (6D) | 14 | 138025 | |
| R | Weatherhead, Clamp-Type 1” | 1 | 260240 | |
| S | Wire, #10 Cu THHN 600V Sol Red | 50' | 846694 | |
| T | Wire, #10 Cu THHN 600V Sol White | 50' | 846701 | |
| U | LB, PVC 1” 90° | 2 | 260068 | |
| V | Adapter, Conduit, 1" Female, Steel-to-PVC | 1 | 257817 | |
| W | Washer, 1" Neoprene Flat Sealing (Carlon E943FW)* | 1 | Nonstock | |
| X | Locknut, 1” Galv Conduit | 1 | 109026 | |
| Y | Connector, Squeezon Al (#1) #6-#1 to #6-#1 | 2 | 211011 | |
| Z | Connector, Bar Tap #4 Cu #8 - 2/0 | 2 | 217134 |
