D0506SC - S&C Switch Control Rod Extension Materials 1-1/2" IPS Pipe
Revision 0
Jun 7, 2012

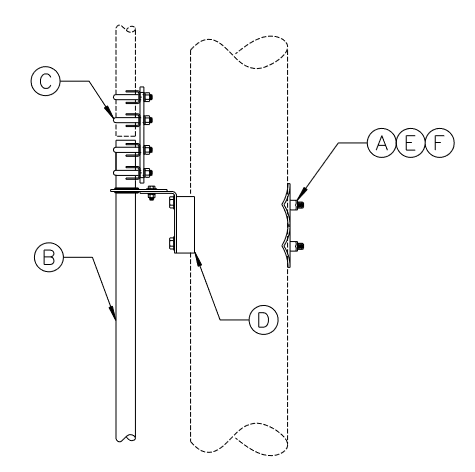

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| D0506SC | A | Bolt, Machine 5/8" x 16" | 2 | 124214 |
| B | Rod, Switch Control 1-1/2" IPS Galv Pipe 9' Min. | 1 | 506909 | |
| C | Coupling, Switch Control Rod 1-1/2" IPS | 1 | 506917 | |
| D | Bearing Guide, Switch Control Rod 1-1/2" IPS | 1 | 506925 | |
| E | Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | |
| F | Washer, Galv Double Coil Spring Lock 5/8" | 2 | 1001443 |
Note:
These control rod extension materials are for use with S&C Omni-Rupter 15kV distribution gang switches. They may also be used for other distribution switches that use 1-1/2" IPS steel pipe control rod.
