D0506INT - Inertial Switch Control Materials
Revision 4
Oct 25, 2018
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| D0506INT | A | Bolt, Machine 5/8" x 16" | 2 | 124214 |
| B* | Bolt, DA 5/8" x 24" | 2 | 125981 | |
| C | Screw, Lag 5/8" x 5" | 2 | 163999 | |
| D* | Nut, oval Eye 5/8" | 2 | 893512 | |
| E | Washer, Galv Sq 3" Curved 13/16" Hole | 4 | 910019 | |
| F | Washer, Galv Double Coil Spring Lock 5/8" | 2 | 1001443 | |
| G | Rod, Switch Control 1" x 10' Fiberglass | 1 | 1002608 | |
| H | Coupling, Switch Control Rod 1" Fiberglass | 1 | 1002609 | |
| I | Guide, Switch Control Rod 1" Fiberglass | 2 | 1002610 |
Notes:
- These control rod extension materials are for use with Inertia Engineering 15kV distribution gang switches that utilize 1" fiberglass control rod.

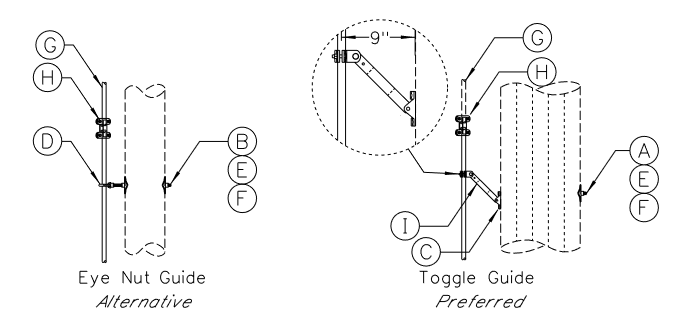

- Fiberglass control rods may be secured to the pole with either toggle guides or DA bolts and eye nuts. Toggle guides are the preferred guide method. Eye nuts and hardware marked with (*) are not included, but can be ordered separately as needed. Return unused material to the warehouse.
- Refer to T&D Guideline 4-11-30.0 for installation guidelines.
