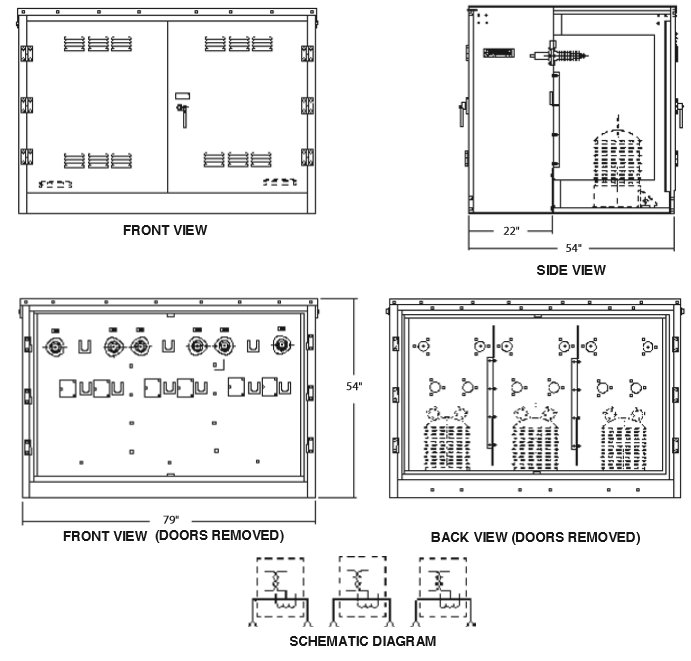

D0112 - Deadfront Pri Metering Cab 600A 15kV 3Ø 1-Line/1-Load
Revision 3
Dec 20, 2016
Notes:
- Cable termination side of cabinet (front) is of deadfront construction, metering side (back) is live-front.
- Refer to Assembly No. 12U325 for a complete list of the line materials required for installation of padmounted primary metering cabinets.
- Important - Contact Metering Department for cost estimates on material and labor for installing primary metering equipment in cabinet.
- A list of material to be used by the Metering Department to prepare this cabinet for installation is given on the second page of this standard.
| Description | Qty | MID |
|---|---|---|
| Cabinet, Deadfront Primary Metering, 600A 15kV 3Ø, 1-Line/1-Load | 1 | 1000806 |
| Padlock, P-Key, 5/16" Stl Shackle, 7/8"W x 3/4"H Opening | 2 | 1000750 |
| Description | Qty | MID |
|---|---|---|
| Bolt, SS 1/2" x 1-1/2" Hex Head w/ Bronze Hex Nut | 21 | 103341 |
| Bolt, SS 1/2" x 2" Hex Head w/ Bronze Hex Nut | 3 | 103367 |
| Bolt, SS 3/8" x 1" Hex Head w/ Bronze Hex Nut | 24 | 103416 |
| Nipple, Chase 1" Malleable Iron Zinc-Plated | 1 | 107749 |
| Condulet, "T" 1" w/ Cover & Gasket Malleable Iron Zinc-Plated | 1 | 108614 |
| Connector, Conduit, Flex 1" Straight Liquid-Tight Malleable Iron Zinc-Plated | 12 | 108713 |
| Washer, SS Rd 1-3/8" Flat 9/16" Hole | 48 | 191627 |
| Washer, SS Belleville Spring 1/2" | 24 | 191635 |
| Washer, SS Rd 1" Flat 7/16" Hole | 24 | 191700 |
| Washer, SS Split Lock 3/8" | 24 | 191718 |
| Spade, Xfmr 6-Hole NEMA 5/8" Stud Mount, Cu or Al, Tin-Plated | 6 | 503997 |
| Switch, Test, 10-Pole, Base Size 3-1/2" x 9-1/2" w/ o Cover | 1 | 563800 |
| VT 7200:120 Single Bushing Outdoor | 3 | 4000178 |
| Transformer, Current (Size to Load) | 3 | |
| Meterbase, 13-Term Ring Type Sgl Pos w/ Test Switch Prov | 1 | 563529 |
| Compound, Oxide Inhibiting | 1 | 784076 |
| Terminal, Compr, Al, Tin-Plated, Underground 350 Al/Cu | 9 | 786410 |
| Wire, 350 kcmil Al 600V Insul. (See Note 2) | 20' | |
| Wire, #6 Cu Bare SD Sol | 8' | 848484 |
| Wire, #2 Cu Bare SD Sol | 12' | 10000027 |
| Conduit, Flexible, 1" Liquid-Tite Gray PVC over Galv Steel Core | 16' | 10000793 |
| Connector, Post, Cu, 250-6, 1-Hole (3/8" Bolt) 1-Conductor Setscrew | 3 | 1001463 |
| Connector, Lug, Al, Tin-Plated, 350-6, 2-Hole 2-Conductor Setscrew | 3 | 100464 |
Notes:
- Metering equipment (including metering transformers) will be supplied and installed by the Metering Department as necessary.
- Get from warehouse scrap. Strip a single 350 kcmil Al conductor from a 350 kcmil Al 600V undergroud triplex (MID 833857) or quadruplex cable (MID 833914).
