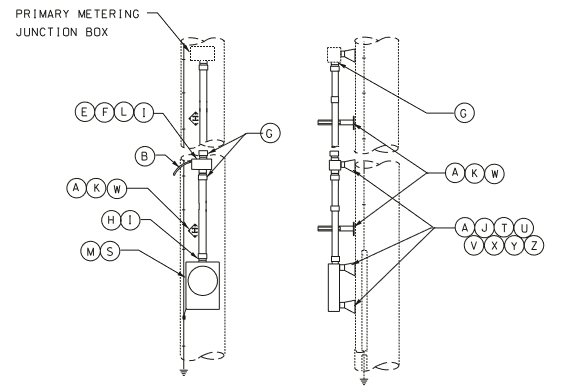

D0104 - Metering for 3Ø Power Quality
Revision 4
Apr 19, 2021
| Item | Description | Qty | MID |
|---|---|---|---|
| A | Screw, Lag 1/2” x 4” | 14 | 1003315 |
| B | Conduit, Liquid-Tite, 1” PVC Gray | 2' | 1000793 |
| C | Conduit, PVC 1” x 10’ Sch 80 Gray | 30' | 250035 |
| D | Coupling, Conduit PVC 1” | 1 | 250407 |
| E | Box, Junction 4” x 8” | 1 | Nonstock |
| F | Connector, Box Liquid-Tite 1” | 1 | 108713 |
| G | Connector, Box 1” | 3 | Nonstock |
| H | Hub, Meter Base, 1” Conduit | 1 | 1001447 |
| I | Adapter, PVC, 1” Male, Steel-to-PVC | 4 | 1001449 |
| J | Bracket, Standoff with 12” T-Slot Channel | 3 | 170259 |
| K | Bracket, Conduit Standoff 15” | 5 | 761123 |
| L | Strip, Terminal 8-Position | 1 | Nonstock |
| M | Socket, Meter Base 100A | 1 | 1001419 |
| N | Wire, #12 Cu THHN 600V Sol White | 45' | 846743 |
| O | Wire, #12 Cu THHN 600V Sol Red | 45' | 846751 |
| P | Wire, #12 Cu THHN 600V Sol Orange | 45' | 846769 |
| Q | Wire, #12 Cu THHN 600V Sol Yellow | 45' | 846777 |
| R | Wire, #4 Cu Bare SD Sol | 10' | 848476 |
| S | Switch, Test 10-Pole | 1 | 563800 |
| T | Bolt, Machine 5/8” x 16” | 4 | 124214 |
| U | Washer, Galv Sq 3” Curved 13/16” Hole | 4 | 910019 |
| V | Washer, Galv Double Coil Spring Lock 5/8" | 4 | 1001443 |
| W | Clamp, Conduit Standoff 1” | 5 | 761305 |
| X | Bolt, SS 1/2” x 1-1/2” | 8 | 103341 |
| Y | Washer, SS Rd 1-1/4” Flat 9/16” Hole | 8 | 191627 |
| Z | Washer, SS Split Lock 1/2” | 8 | 191669 |
