D0103 - 3Ø Volt Meter
Revision 6
Apr 19, 2021

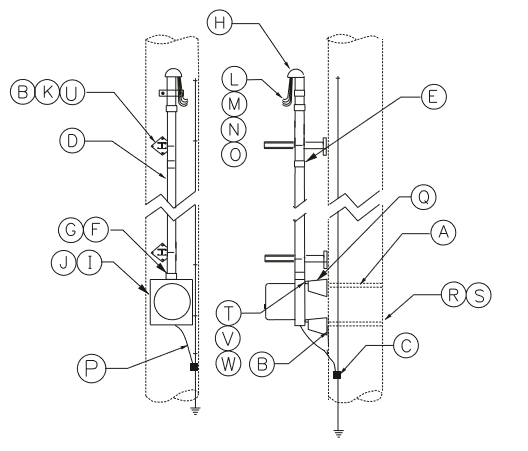

| Item | Description | Qty | MID |
|---|---|---|---|
| A | Bolt, Machine 5/8” x 16” | 2 | 124214 |
| B | Screw, Lag 1/2” x 4” | 14 | 1003315 |
| C | Connector, Mini-Wedge Cu #4 - #4 | 1 | 212754 |
| D | Conduit, PVC 1” x 10’ Sch 80 Gray | 25' | 250035 |
| E | Coupling, Conduit PVC 1” | 1 | 250407 |
| F | Adapter, PVC, 1” Male, Steel-to-PVC | 1 | 1001449 |
| G | Hub, Meter Base, 1” Conduit | 1 | 1001447 |
| H | Weatherhead, Clamp-Type 1” | 1 | 260240 |
| I | Socket, Meter Base 100A | 1 | 1001419 |
| J | Meter, Form 2S, Class 200, Volts-Squared Hour Recording | 1* | 4000157 |
| K | Bracket, Conduit Standoff 15” | 6 | 761123 |
| L | Wire, #12 Cu THHN 600V Sol White | 45' | 846743 |
| M | Wire, #12 Cu THHN 600V Sol Red | 45' | 846751 |
| N | Wire, #12 Cu THHN 600V Sol Orange | 45' | 846769 |
| O | Wire, #12 Cu THHN 600V Sol Yellow | 45' | 846777 |
| P | Wire, #4 Cu Bare SD Sol | 10' | 848476 |
| Q | Bracket, Standoff with 12” T-Slot Channel | 2 | 170259 |
| R | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 |
| S | Washer, Galv Double Coil Spring Lock 5/8" | 2 | 1001443 |
| T | Bolt, SS 1/2” x 1-1/2” | 6 | 103341 |
| U | Clamp, Conduit Standoff 1” | 6 | 761305 |
| V | Washer, SS Rd 1-1/4” Flat 9/16” Hole | 4 | 191627 |
| W | Washer, SS Split Lock 1/2” | 4 | 191669 |
