D0709 - Overhead Fault Indicators
Revision 2
Sep 10, 2013
| C.U | Conductor Diameter Range |
Description | Qty | MID |
|---|---|---|---|---|

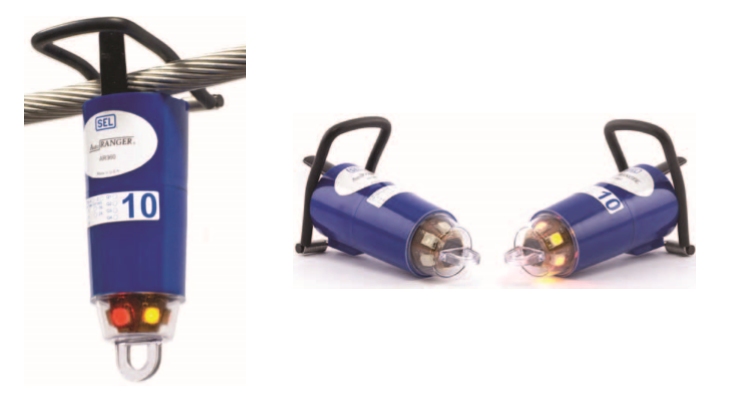

| D0709 | 0.160" - 1.5" | Fault Indicator, Load Tracker, 1Ø OH #2 ACSR - 795 kcmil AAC & ACSR |
1 | 1001521 |
Notes:
- Fault indicator features a load current/voltage reset, 4 hr temporary fault automatic time reset, and a 48 hr permanent fault automatic time reset. Indicator flashes yellow for temporary fault. Indicator flashes red and yellow for permanent fault.
- Refer to T&D Guideline 4-11-20.0 for fault indicator application guidelines. Refer to T&D Guideline 4-11-20.1 for installation and operational information.
- Load-tracking fault indicators shift their time-current curve to a level appropriate for the load and do not rely on specific current levels to operate.
